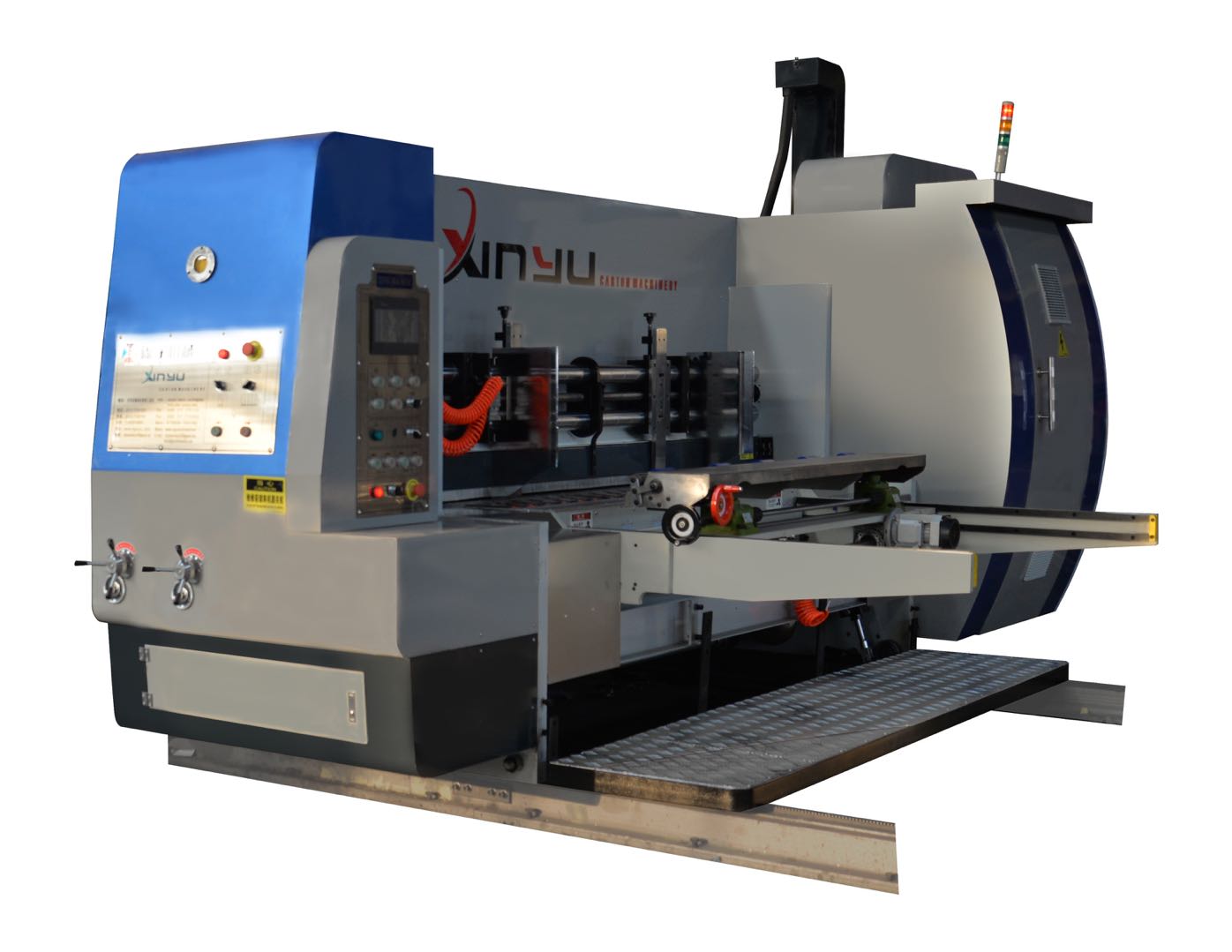

前緣送紙部LESS-PRESSURE LEAD EDGE FEEDER UNIT
1：雙膠軸輕壓體系設想，有用加重對紙板的粉碎。在滿版印刷時表現更加凸起
The double rubber feeding roller less pressure system design effectively reduces the damage to the cardboard. More beautiful in full-page printing.
2：送紙膠軸接納疾速換軸設想，簡略操縱便可改換膠軸
The paper feed rubber roller adopts a quick shaft change design, and the rubber roller can be replaced by simple operation.
3：除塵體系，去除靜電裝配，毛刷除塵和強力變頻風機，并共同粘輥除塵，使得除塵結果佳
Dust removal system, Electrostatic removal device, brush dust removal and powerful inverter fan, combined with the dust removal of the sticky roller, the dust removal effect is optimal.
4：前緣部裝有17寸產業攝像屏，便利機器后方操縱工察看清廢機堆碼機運轉狀況，實時調劑
It is equipped with a 17-inch industrial camera screen, which is convenient for the operator in front of the machine to observe the running status of the blanking machine stacking machine and adjust it in time.

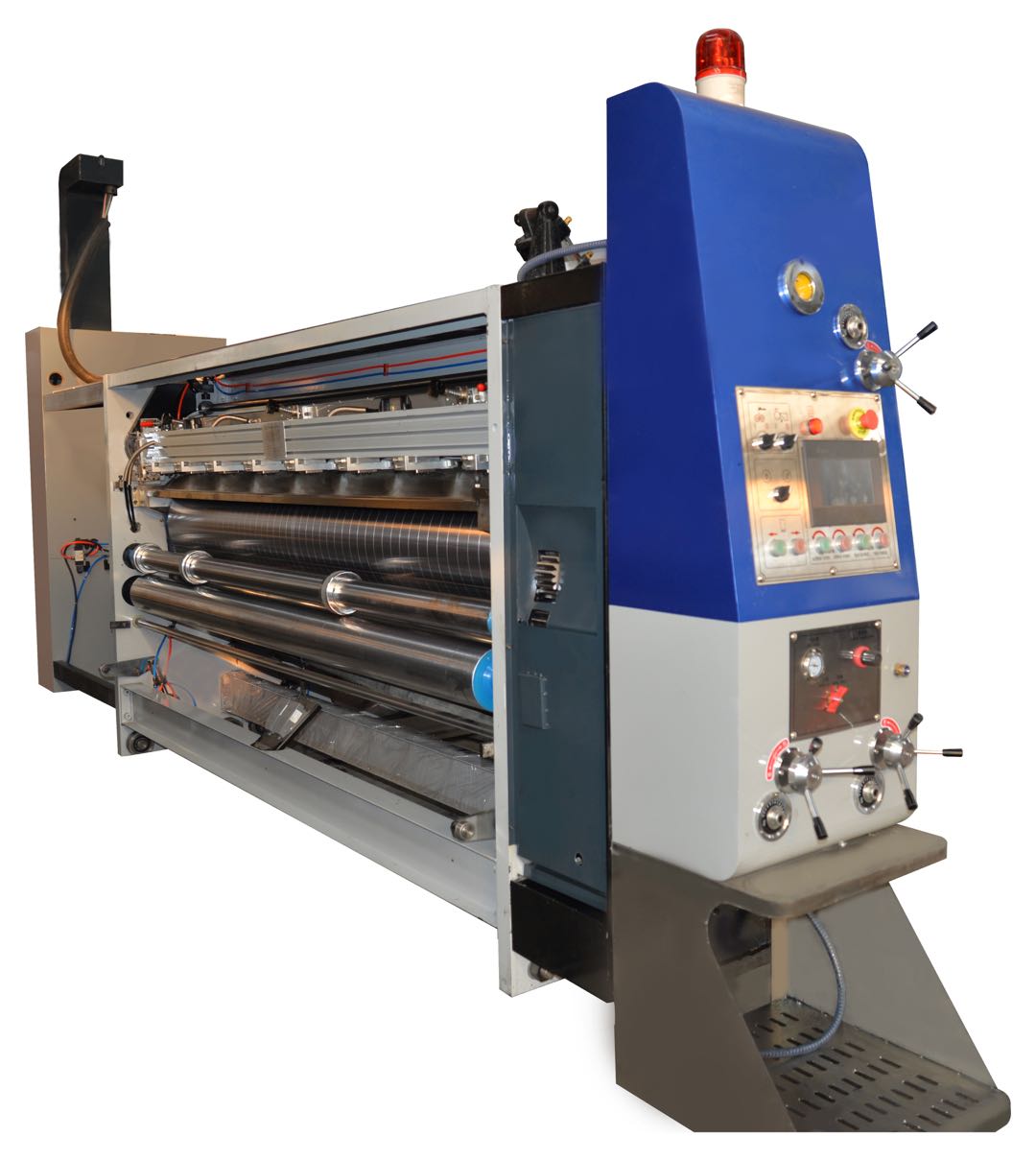

印刷部 PRINTING UNIT ( vacuum transfer&CERAIMC ROLLER &DOCTOR BLADE TYPE)
1：零件接納進步前輩的真空吸附通報體例，風量通報紙板，長處：紙板通報安穩，其印刷套色更加精準/ 風箱風門可按照紙板小中大規格，停止主動調劑。保障了輕浮紙板，曲折紙板和低品德紙板的通報
The whole machine adopts advanced vacuum adsorption transmission system,Advantages: smooth transfer of paperboard, more accurate printing coloring.
2：The printing unit adopts a ceramic roller and doctor blade.The ceramic roller LPI can be selected from 300-800. The wear resistance of the ceramic anilox roller is more than ten times that of the conventional hard chrome-plated roller.
3：氣囊式刀腔絕對來講能耽誤陶瓷輥的利用壽命，加上接納塑料刮刀片，能很好的延緩陶瓷輥的磨損速率，開放式布局還不輕易使陶瓷輥發生劃痕。
The doctor blade can extend the service life of the ceramic roller relatively, and the plastic scraper blade can well delay the wear speed of the ceramic roller, and the open structure is not easy to damage ceramic roller.
4：零件一切操縱均完成觸摸屏全主動調理，空隙壓力調理局部（首要為膠軸與印板滾筒之間的空隙調理）大大削減野生的利用；按照紙板的厚度印刷版的厚度，對印刷滾筒與風向之間的壓力主動調理。
The whole operation of the whole machine realizes the automatic adjustment on the touch screen. The pressure adjustment part greatly reduces the manual use; according to the thickness of the printing plate, the printing cylinder and the wind direction The pressure between the two is automatically adjusted.
5：印刷套印精度可達±0.5MM
Printing color register precision is ±0.5MM.

烘干部DRYER UNIT
1：紅外線枯燥體系，烘干支架氣動起落，便于印刷進程掩護任務
Infrared drying system, drying bracket pneumatic lifting, easy to print process maintenance work.
2：紅外線加熱體系，溫度回升敏捷溫度，每組加熱功率為60KW
Infrared heating system, the temperature rises rapidly and the heating power of each group is 60KW.
3：溫度恒溫節制，可接納分段加熱，節流電加熱功率
Temperature constant temperature control, sectional heating can be used to save electric heating power.
4：溫度報警，溫度超溫時主動報警
Temperature alarm, automatic alarm when temperature is over temperature.
5：涼風對流輪回，進步烘干結果，下降烘干加熱功率
Cold air convection circulation, improve drying effect, reduce drying heating power.
6：烘干體系主動感到，按照機器速率，主動調理溫度，速率快時，烘干溫度主動晉升。
The drying system automatically senses the temperature according to the speed of the machine. When the speed is fast, the drying temperature is automatically increased.

上光部VARNISH UNIT
同印刷部 SAME AS THE PRINTING UNIT

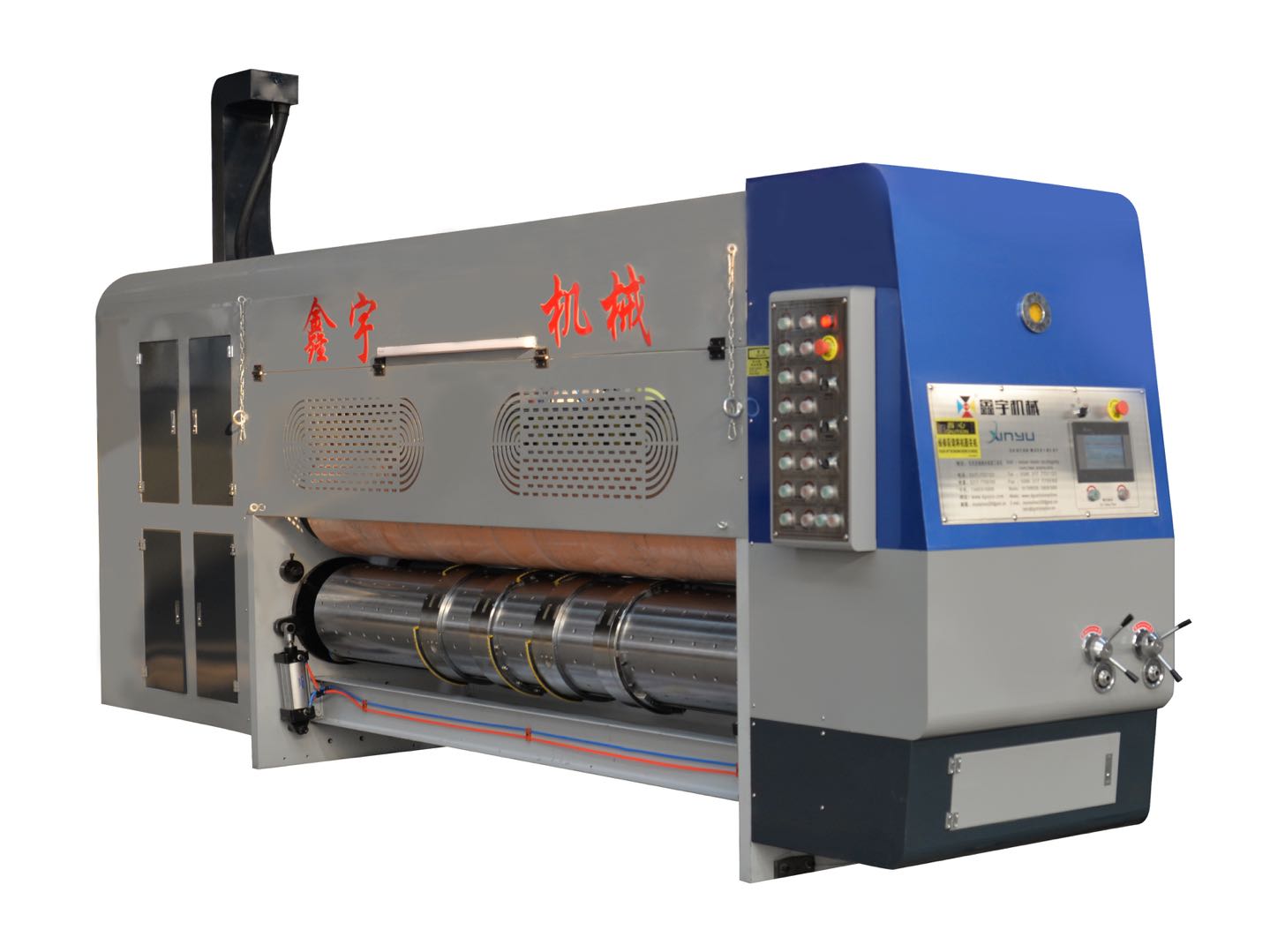

模切部 DIE CUTTER
1：德國科比自力伺服驅動
German Keb independent servo drive.
2：速差主動彌補功效把膠墊滾筒因修復后發生的線速率變更主動彌補
The automatic differential compensation function automatically compensates the anilx roller for the linear velocity change caused by the repair.
3：壓線預壓主動觸摸屏調理
Pre-creasing and creasing is automatically adjust on the touch screen.
4：模切部寧靜裝配接納施耐德聯鎖裝配，開門便可斷電，掩護了操縱職員的寧靜
Die cutter unit is equipped with Schneider lock system ,when open the door can cut off the power supply ,it can protect the operators safety.

電氣局部 Electrical parts
1：本機電氣利用法國施耐德，開關電源為臺灣明緯，繼電器為日本歐姆龍
This machine uses all French electric Schneider, the switching power supply is Taiwan Meanwell , the relay is Japan Omron.
2：觸摸屏，變頻器，伺服驅動為臺灣臺達
Touch screen, frequency converter, servo drive for Taiwan Delta.
3：機電為瑞士ABB
The motor is Swiss ABB.
4：電氣局部為人性化操縱，寧靜舉措措施掩護操縱工的寧靜
The electrical part is humanized, and the safety facilities greatly protect the safety of the operator.
